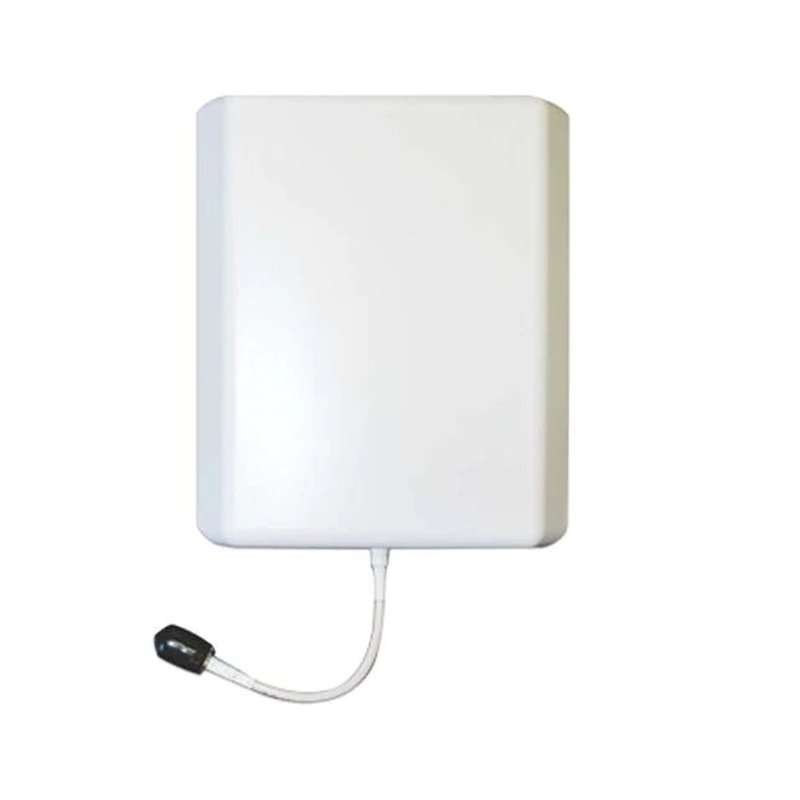

Directional In-Building Panel Antenna, 8dBi 698-960 / 1710-2700MHz Wall Mount Antenna
- Item No.: PA0727-8
- Size/Spec: 8 dBi 698-960/1710-2700MHz
- Function: Indoor panel Wall Mount Antenna
Description
Electrical Specificat | |||||
| Frequency Range | 698-806 MHz | 806-960 MHz | 1710-2500 MHz | 2500-2700 MHz | |
| Polarization | Vertical | ||||
| VSWR | ≤2.0 | ≤1.5 | ≤1.5 | ≤2.0 | |
| Gain | 7/8 dBi | ||||
| Input Impedance | 50ohm | ||||
| Half-power Beamwidth | Hor:65° Ver:55° | ||||
| F/B Ratio | ≥15dB | ||||
| PIM, 3rd Order C(2×33dBm 2W) | <-135dbc | ||||
| Max.Power | 50W | ||||
| Lightning Protection | DC Ground | ||||
Mechanical Specifications | |||||
| Connector | N-Female (Copper) | ||||
| Connector Position | With 30cm Low Loss Pigtail | ||||
| Dimensions | 210×180×43mm | ||||
| Antenna Weight | 0.5kgs | ||||
| Packing Size | 53×32×41(20pcs) | ||||
| Reflextor Material | Aluminum | ||||
| Radome Material | ABS | ||||
| Radome Color | White | ||||
| Operating Temperature | -40℃ to +70℃ | ||||
Feature:
Indoor coverage, such as hotels, office buildings,etc.
compact structure, beautiful appearance
Wireless communication & Data transmission.
Indoor signal coverage
Easy to install and operate
